FEATURES

  • Wide range of opening types: inward-opening (side-hung, turn/tilt, bottom hung, tilt-before-turn, double-vent, horizontal/vertical pivot vents and tilt/slide) and outward-opening (projected top-hung, projected side-hung, bottom hung, side-hung and new, innovative double-vent solution).
  • Smooth single-chamber profiles for simple, robust connections.
  • Use of crimped and nailed corner cleats as well as screw-type joint technology as additional, new connection option for optimized noise levels and tolerance equalization.

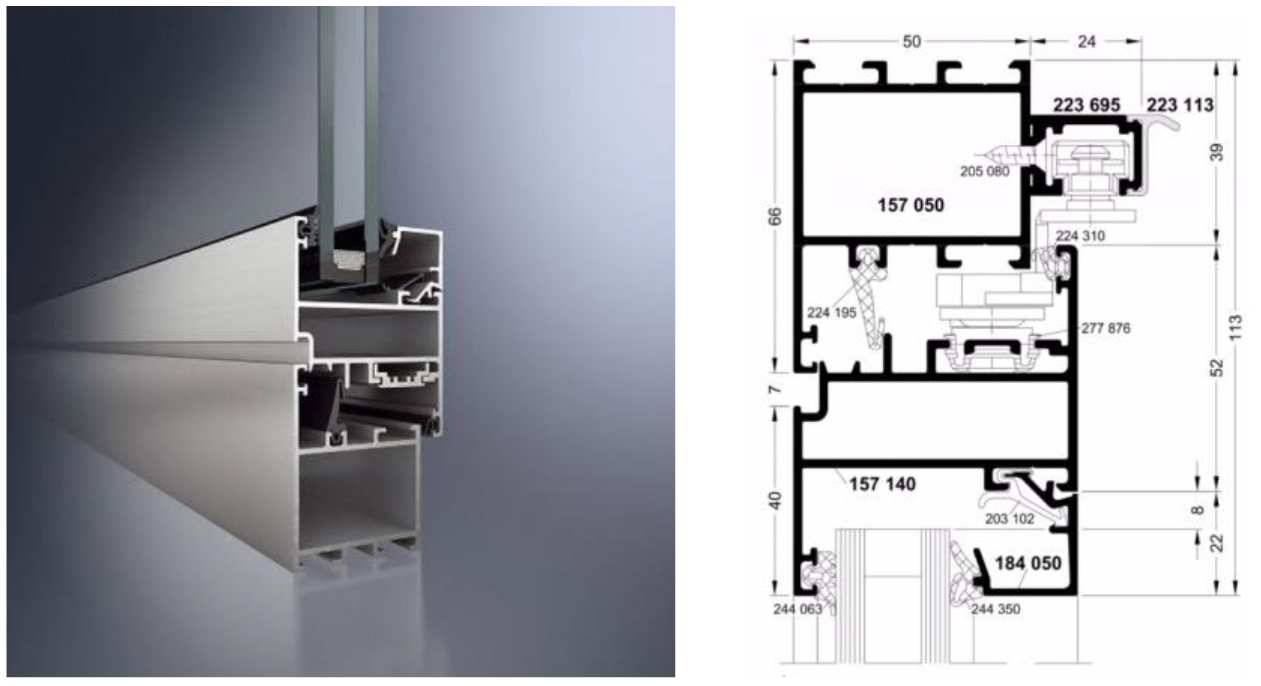

DESIGN PARAMETERS


PERFORMANCE PARAMETER

Performance Parameter Testing Value Testing Standard
Water tightness 600 Pa EN 1027 / EN 12208
Wind load resistance 1200 Pa DIN EN 12210
Air permeability 600 Pa DIN EN 12207

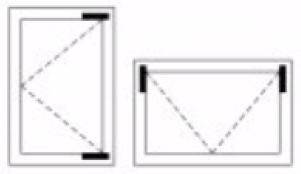

TYPES OF WINDOWS

image image image image image image
Handle Options for Inward Opening Standards window handle Windows handle, short Security window handle, lockable Security window handle, with push button lock Push-in window handle
Colors C0, RAAL 9005, RAAL 9010, RAAL 9016, INOX, INOX-Look C0, RAAL 9005, RAAL 9010, RAAL 9016, INOX, INOX-Look C0, RAAL 9005, RAAL 9010, RAAL 9016, INOX, INOX-Look C0, RAAL 9005, RAAL 9010, RAAL 9016, INOX, INOX-Look C0, RAAL 9005, RAAL 9010, RAAL 9016
image image image image image image
Handle Options for Inward Opening Push-in window handle Push-in window handle Push-in window handle Push-in window handle Push-in window handle
Colors C0, RAAL 9005, RAAL 9010, RAAL 9016 C0, INOX C0, INOX C0, INOX C0, INOX
image image image image image image

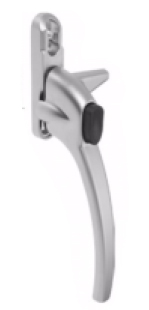

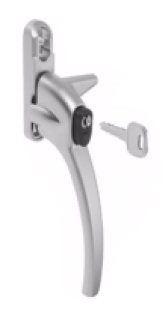

Handle Options for Outward Opening Standard window handle Lockable window handle Standard window handle cranked Cranked window handle, lockable, with push-button, including key. Security window handle, lockable with modified square drive and pressure cylinder, including key.
Colors C0, RAAL 9005, RAAL 9010, RAAL 9016 C0, RAAL 9005, RAAL 9010, RAAL 9016 C0, RAAL 9005, RAAL 9010, RAAL 9016 C0, RAAL 9005, RAAL 9010, RAAL 9016 C0, RAAL 9005, RAAL 9010, RAAL 9016
image image image image image image
Handle Options for Outward Opening Custodian Handle with Key Schueco Feature Standard Handle, Can be used for both Inward and Outward Opening Profile Culinder with Thumb Turn Standard Handle with Push Button Lockable Handle with Push Button, Including Key
Colors C0, RAAL 9005, RAAL 9010, RAAL 9016 C0, RAAL 9005 - Satin chrome, White, Black Satin chrome, White, Black
