Matic Window

FEATURES

Enhanced insulation zone with foam-filled insulating bars.
Solution for easy-access patio and balcony doors in turn/tilt and double vent construction as well as outward-opening (side-hung and double vent construction)
Use of crimped and nailed corner cleats, also as a new, additional connection option: screw-type connection technology to minimize noise generation and equalize tolerances
Concealed drainage and at the lowest profile point
Burglar resistance up to WK3 (RC 3) in accordance with DIN V ENV 1627 (DIN EN 1627)

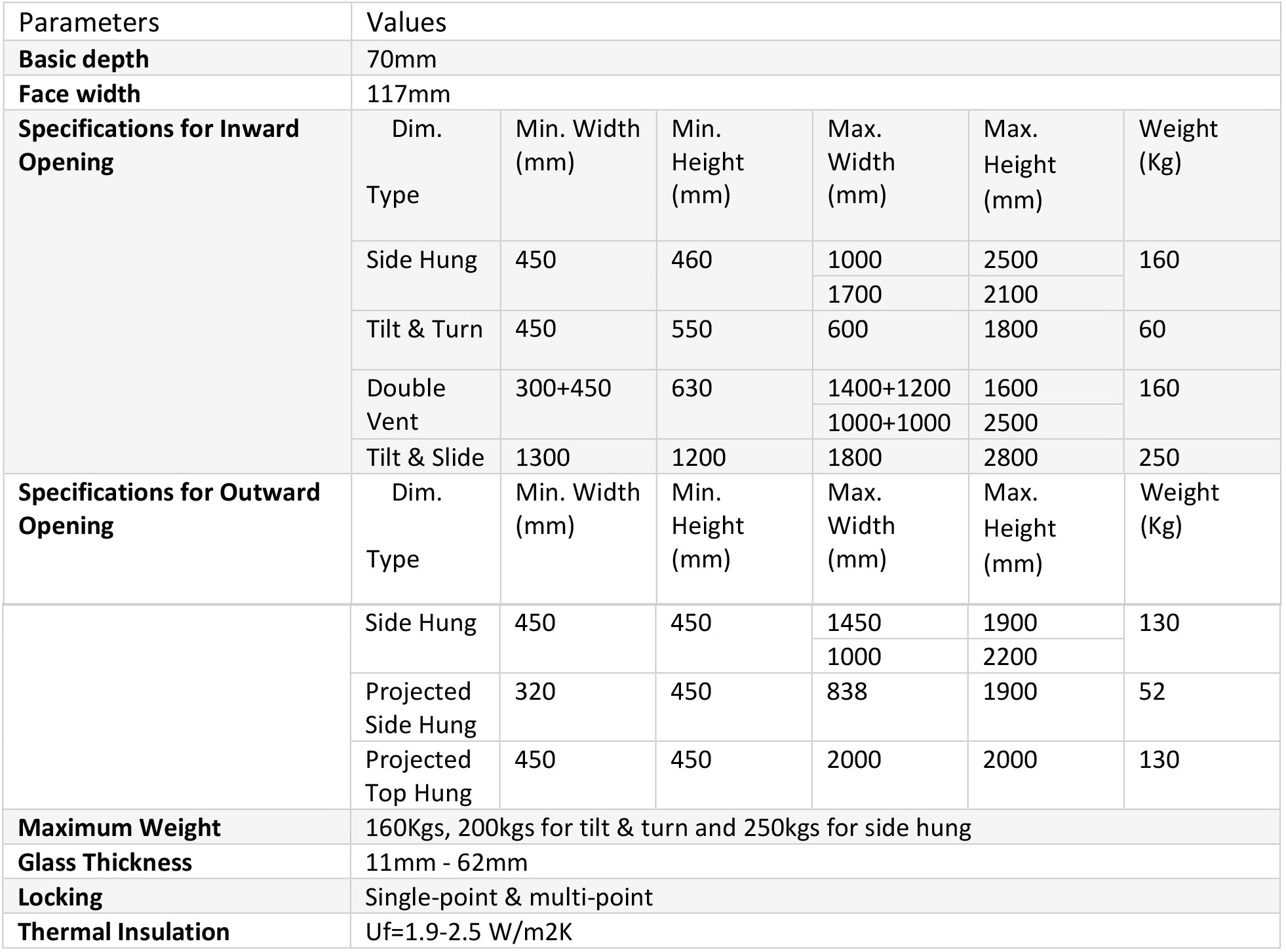

DESIGN PARAMETERS

PERFORMANCE PARAMETER

Parameter	Testing Value	Testing Standard
Wind load resistance	Class C5/B5 (2000 Pa)	DIN EN 12210
Water tightness	9A (600 Pa)	EN 12208
Air permeability	Class 4 (600 Pa)	DIN EN 12207
Sound Insulation	48 dB	DIN EN ISO 140-3

HANDLE ACCESSORIES


Handle Options for Inward Opening	Standards window handle	Windows handle, short	Security window handle, lockable	Security window handle, with push button lock	Push-in window handle
Colors	C0, RAAL 9005, RAAL 9010, RAAL 9016, INOX, INOX-Look	C0, RAAL 9005, RAAL 9010, RAAL 9016, INOX, INOX-Look	C0, RAAL 9005, RAAL 9010, RAAL 9016, INOX, INOX-Look	C0, RAAL 9005, RAAL 9010, RAAL 9016, INOX, INOX-Look	C0, RAAL 9005, RAAL 9010, RAAL 9016

Handle Options for Inward Opening	Push-in window handle	Push-in window handle	Push-in window handle	Push-in window handle	Push-in window handle
Colors	C0, RAAL 9005, RAAL 9010, RAAL 9016	C0, INOX	C0, INOX	C0, INOX	C0, INOX
