FEATURES

  • Excellent thermal insulation due to hollow chamber centre gasket and wide insulation zone
  • Concealed drainage, at the lowest profile point
  • Use of crimped and nailed corner cleats as well as screw-type connection technology as an additional, new connection option for optimised noise levels and tolerance equalisation
  • Burglar resistance up to WK3 (RC 3) in accordance with DIN V ENV 1627
  • Solution for easy-access patio and balcony doors in turn/tilt and double-vent design
  • New, outward-opening window series with centre gasket also available as a double-vent window; also with burglar resistance in accordance with PAS 24

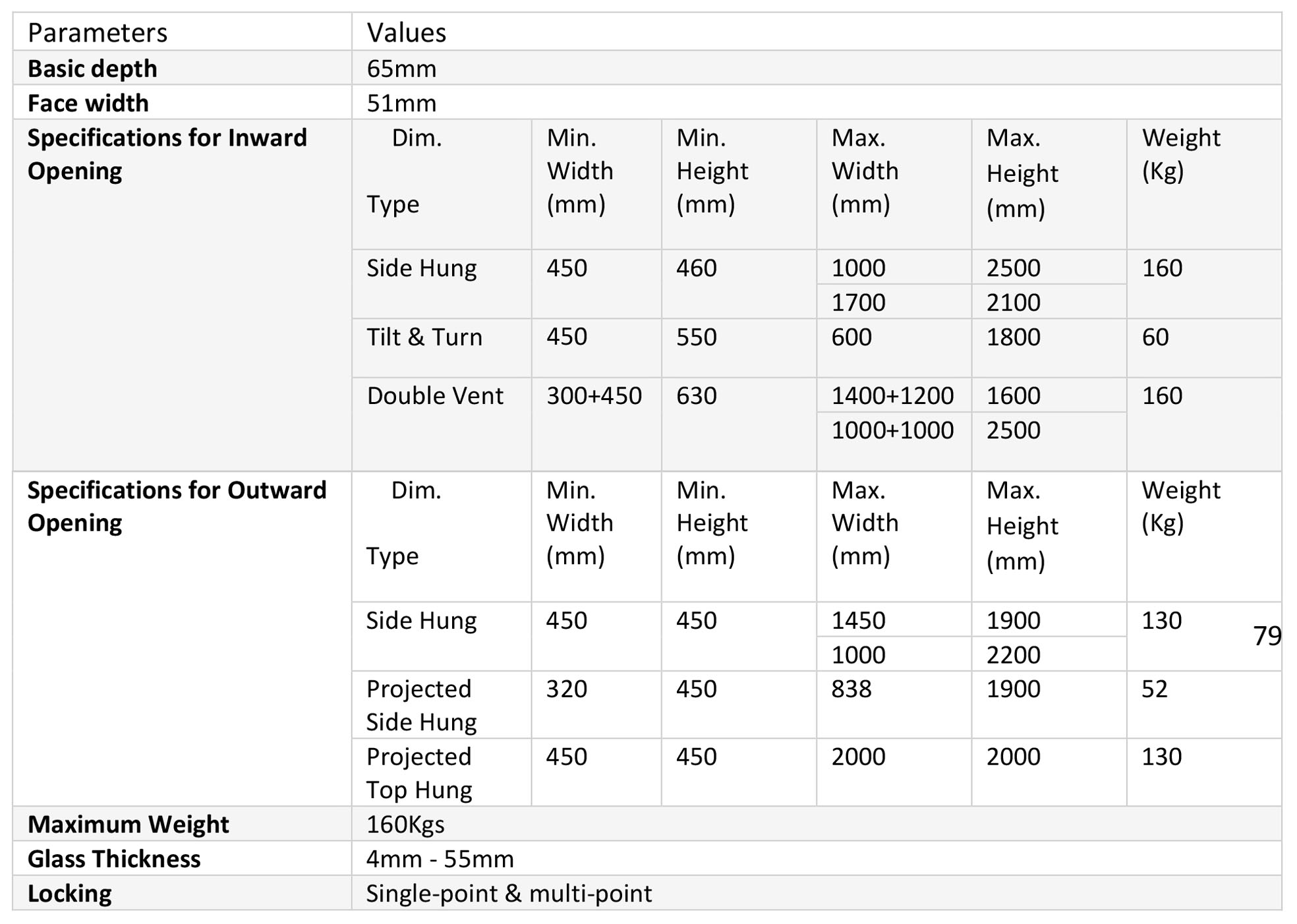

DESIGN PARAMETERS


PERFORMANCE PARAMETER

Performance Parameter Testing Value Testing Standard
Water tightness 9A (600 Pa) DIN EN 12208
Wind load resistance Class C5/B5 (2000 Pa) DIN EN 12210
Air permeability Class 4 (600 Pa) DIN EN 12207
Thermal Insulation Uf=1.9-2.5 W/m2K DIN EN ISO 10077-2

HANDLE ACCESSORIES

image image image image image image
Handle Options for Inward Opening Standards window handle Windows handle, short Security window handle, lockable Security window handle, with push button lock Push-in window handle
Colors C0, RAAL 9005, RAAL 9010, RAAL 9016, INOX, INOX-Look C0, RAAL 9005, RAAL 9010, RAAL 9016, INOX, INOX-Look C0, RAAL 9005, RAAL 9010, RAAL 9016, INOX, INOX-Look C0, RAAL 9005, RAAL 9010, RAAL 9016, INOX, INOX-Look C0, RAAL 9005, RAAL 9010, RAAL 9016
image image image image image image
Handle Options for Inward Opening Push-in window handle Push-in window handle Push-in window handle Push-in window handle Push-in window handle
Colors C0, RAAL 9005, RAAL 9010, RAAL 9016 C0, INOX C0, INOX C0, INOX C0, INOX
