FEATURES

  • Seamless visual integration without compromising the uniform façade geometry.

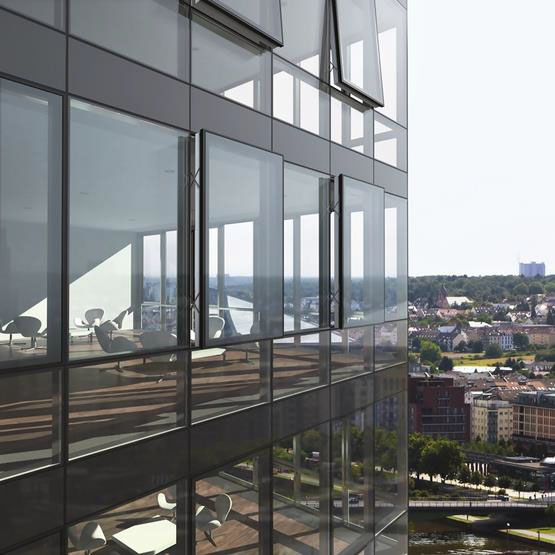

  • Opening types: projected top-hung and parallel-opening window.
  • Can be used in the following façade systems:
    1. FW 50+ /FW 60+, FW 50+ SG/FW 60+ SG, Schüco USC 65, Schüco UCC 65 SG, Schüco AOC, FWS 35 PD
  • Two glazing types:
    1. Structural glazing: Stepped insulating glazing with UV-resistant edge seal, bonded with silicone at position 2
    2. Standard insulating glass with continuous glazing bead
  • Outer and vent frames are joined in the workshop and are installed as a complete unit on the construction site
  • Optional RC 2 burglar resistance using additional fittings components

DESIGN PARAMETERS


HANDLE ACCESSORIES

image image image image image

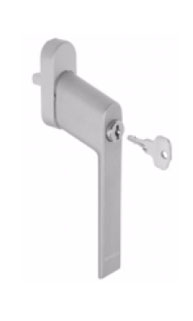

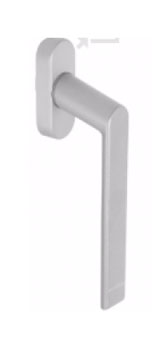

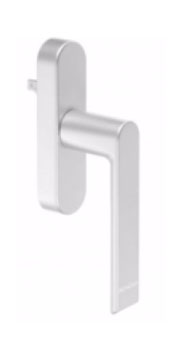

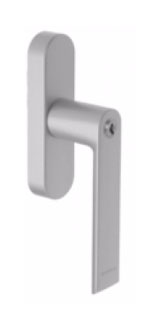

Handle Options Gearbox Handle Gearbox Handle, Lockable Window handle Lockable window handle
Colors Silver Look, RAL 9005 Silver Look, RAL 9005 RAL 9005 RAL 9005
