FEATURES

  • Non-insulated sliding system for tropical regions
  • Choice of double track or triple track outer frames and large element sizes
  • Top or bottom lights for variable sliding types
  • Various handle options, such as flush handle, lever handle and pull handle.

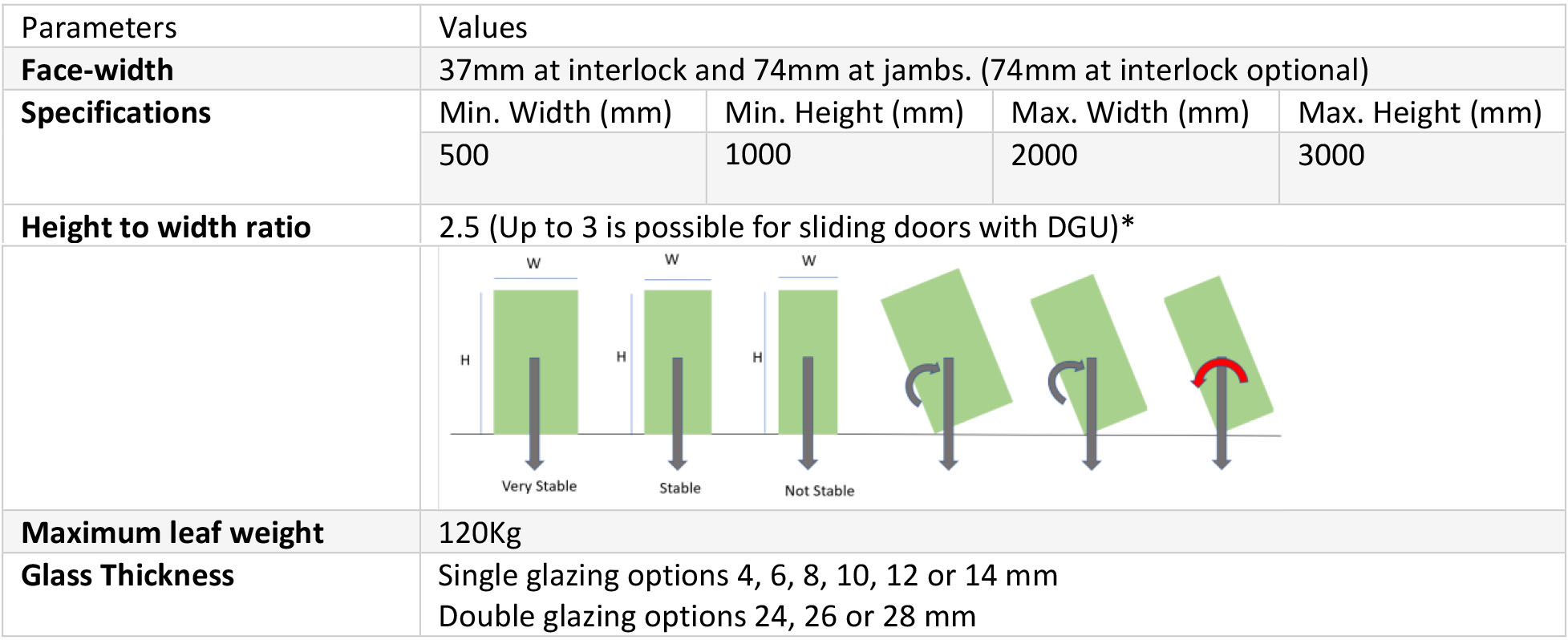

DESIGN PARAMETERS


PERFORMANCE PARAMETER

Performance Parameter Testing Value Testing Standard
Water tightness Class 7A (300 Pa)*
Class 8A (450 Pa)**		 EN 1027 / EN 12208
AAMA/ASTM
Wind load resistance 2200 Pa*** EN 12210
Air permeability 600 Pa EN 12207
Sound insulations 33 dB**** EN ISO 717-1

HANDLE ACCESSORIES

Type Window handle Recessed pull handle Customised handle Retaining catch
Colors Color: RAL 9003, RAL 9005, RAL 9006, RAL 9010 Color: RAL 9005, RAL 9006, RAL 9016 Color: RAL 9005, RAL 9006, RAL 9010
