FEATURES

  • Flat threshold with gasket seal for weather performance
  • Outer and vent frames are mitre cut on all corners

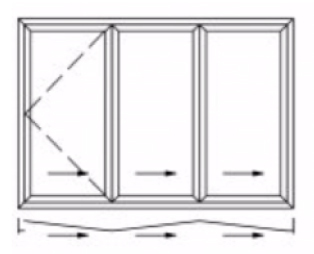

  • Units can be folded to the right, left, inwards or outwards as required
  • 90° building outer corner, inward and outward-opening possible
  • Stainless steel track and stainless steel or plastic rollers make the vents easy to move

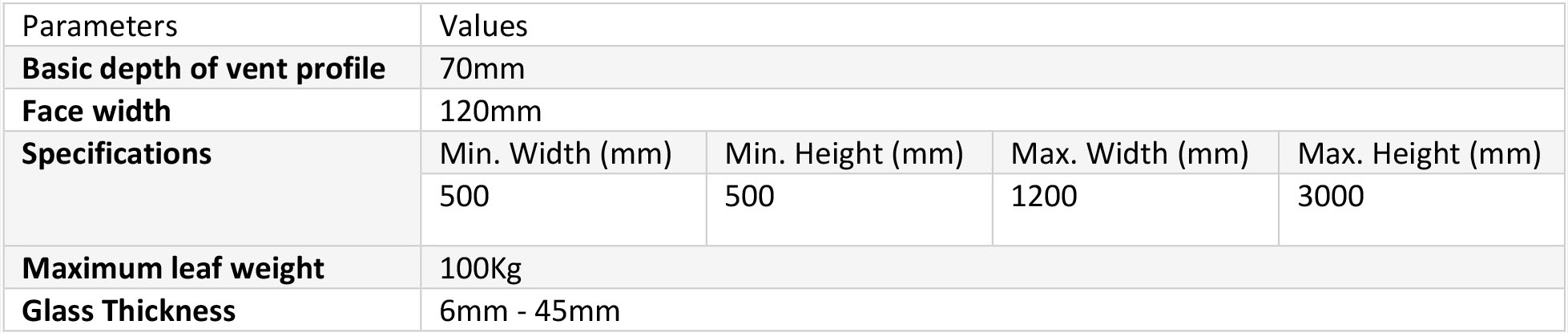

DESIGN PARAMETERS


PERFORMANCE PARAMETER

Performance Parameter Testing Value Testing Standard
Water tightness Upto Class 8A-9A (450-600 Pa) EN 14351-1
Wind load resistance Upto Class B3/C3 (1200 Pa EN 14351-1
Air permeability Upto Class 3 (600 Pa) EN 14351-1

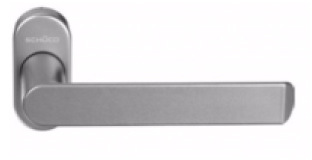

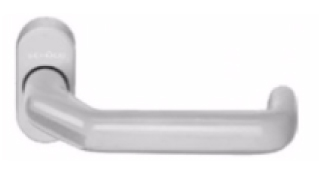

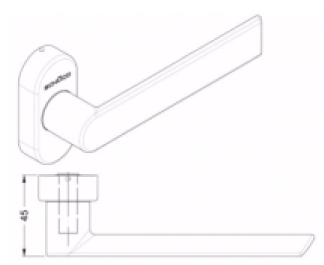

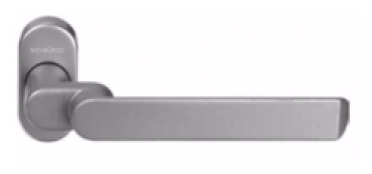

HANDLE ACCESSORIES

Type Door handle with return spring and concealed fixing Door handle with return spring, however cranked Door handle with return spring, cranked for vents where b=< 800mm Door handle with flat design
Color C0, RAL 9005, RAL 9010, RAL 9016 C0, RAL 9005, RAL 9010, RAL 9016 C0, RAL 9005, RAL 9010, RAL 9016 C0, RAL 9005, RAL 9010, RAL 9016
