FEATURES

  • Robust single-chamber hollow profiles
  • Multi-purpose groove for rapid, push-in fixing of fittings using locking cams
  • RC 2 (WK2) burglar resistance
  • Visually compatible with Schüco ADS 65.NI SP, Schüco ADS 65.NI FR 30

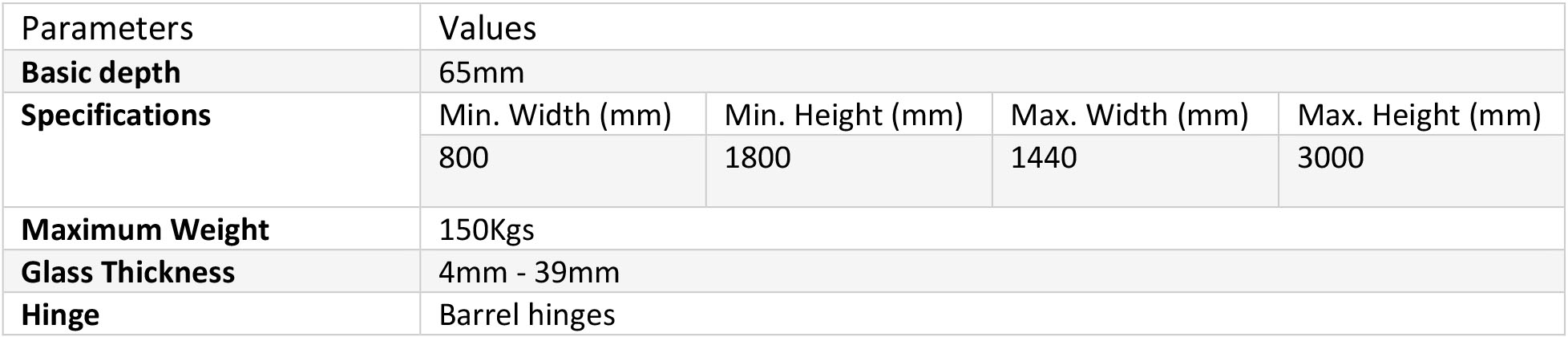

DESIGN PARAMETERS


PERFORMANCE PARAMETER

Parameter Testing Value Testing Standard
Wind load resistance 9A (600 Pa) EN 12208
Air permeability Class 4 (600 Pa) DIN EN 12207

HANDLE ACCESSORIES

Type Angled Door Pull Door Pull Straight barwith end cap Straight made from oval tubing Curved door pull
Color INOX INOX INOX INOX
Type Rectangular door pull Semicircular door Rectangular door pull Triangular door pull
Color INOX INOX INOX INOX
Type Door Pull Door Pull Straight with oval rosette Cranked with oval rosette
Color INOX INOX RAAL 9005, RAAL 9010, RAAL 9016, INOX RAAL 9005, RAAL 9010, RAAL 9016, INOX
Type Straight with oval rosette Cranked with angular rosette Cranked with angular rosette Cranked with angular rosette
Color C0, RAAL 9005, RAAL 9010, RAAL 9016 C0, RAAL 9005, RAAL 9010, RAAL 9016 INOX finish INOX finish
Type Cranked with angular rosette Cranked with angular rosette Straight with oval rosette Straight with oval rosette
Color INOX finish INOX finish C0, RAAL 9005, RAAL 9010, RAAL 9016 C0, INOX
Type Cranked with oval rosette Cranked with oval rosette Cranked with oval rosette Cranked with oval rosette
Color C0, INOX C0, INOX C0, INOX C0, INOX
Type Cranked with oval rosette Cranked with oval rosette Cranked with oval rosette Door Handle
Color C0 C0 C0 C0, RAAL 9005, RAAL 9010, RAAL 9016
Type Door Handle
Color C0, RAAL 9005, RAAL 9010, RAAL 9016
